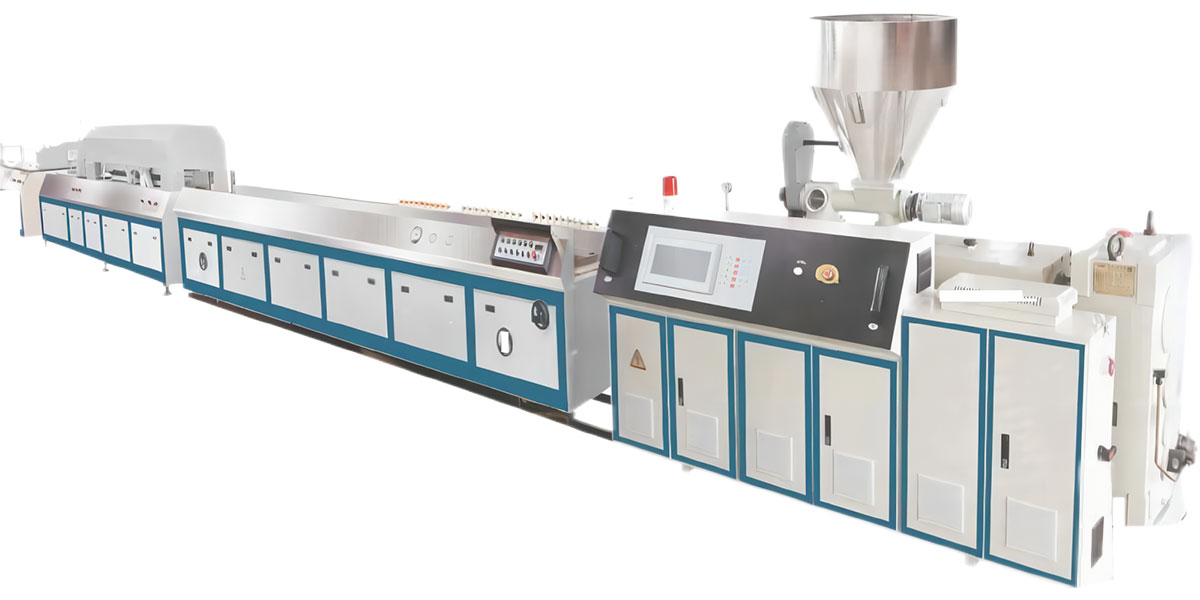

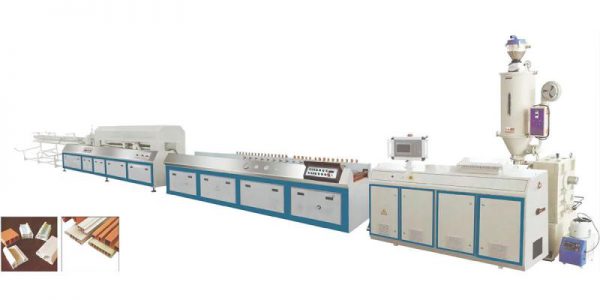

Mainly used for the production of electrical products such as PVC electrical cabinet line ducts, decoration threading pipes, open wire ducts and other electrical products; decoration materials such as top corner lines, waist lines, skirting lines, etc.; as well as window profiles, door casing lines and other products .
Different product requirements can be configured according to customer requirements to produce single-layer and multi-layer composite products; ASA and other materials can also be co-extruded on the surface to increase anti-aging, color difference years and other requirements.
| Main techinical parameter: | ||||
|
Model |
LJSZ-51 |
LJSZ-55 | LJSZ-65 | LJSZ-80 |
|
Screw diameter(mm ) |
51/105 |
55/110 |
65/132 |
80/156 |
|
Effective working length of screw(mm) |
1050 |
1150 |
1440 | 1800 |
|
Screw speed (r/min) |
1—32 |
1—32 |
1-34.4 | 1—38 |
|
Extruder motor |
18.5kw |
22kw | 37kw | 55kw/75kw |
|
Heating power (kw) |
7.9 |
18 |
24 | 34 |
|
Out put(kg/h) |
150kg/h |
180kg/h | 250kg/h | 480kg/h |
|
Center height (mm) |
1000 |
1000 |
1000 |
1100 |
| Note: The abowe paramelers are subject change without nolice | ||||
